External Pedestrian Path Surfaces

Array ( [0] => stdClass Object ( [block_count] => 0 [layout] => text_block [slug] => block-dd0590e1 [title] => [source] => page [visibility] => 1 [background_colour] => bg-transparent [block_width] => indent [width] => stdClass Object ( [container_class1] => mb-4 [container_class2] => container [container_class3] => bg-transparent py-4 ) [class] => fcb-text_block [content] =>

Slips and trips account for fifty percent of all reported injuries to members of the public. People with impairment through age or disability are particularly prone to this type of accident. The elderly are also more likely to suffer serious injury than younger people.

The remaining content in this section is only available to VSG Members or Subscribers. So please either login (link) or subscribe (link) for 24 hour access

[block_anchor] => [block_format] => custom_subnav [block_introduction_title] => [block_custom_subnav] => [block_section_heading] => [product] => [product_text] => ) [1] => stdClass Object ( [block_count] => 1 [layout] => text_block [slug] => block-80bce35c [title] => [source] => page [visibility] => 0 [background_colour] => bg-transparent [block_width] => full [width] => stdClass Object ( [container_class1] => container-fluid bg-transparent p-4 mb-4 [container_class2] => container [container_class3] => ) [class] => fcb-text_block [content] =>

Careful selection, construction and maintenance of path surfaces can have a significant impact on the number of falls that visitors and staff may experience. When choosing the most appropriate surface take account of how the path will be used, and also consider its setting, environment and the landscape.

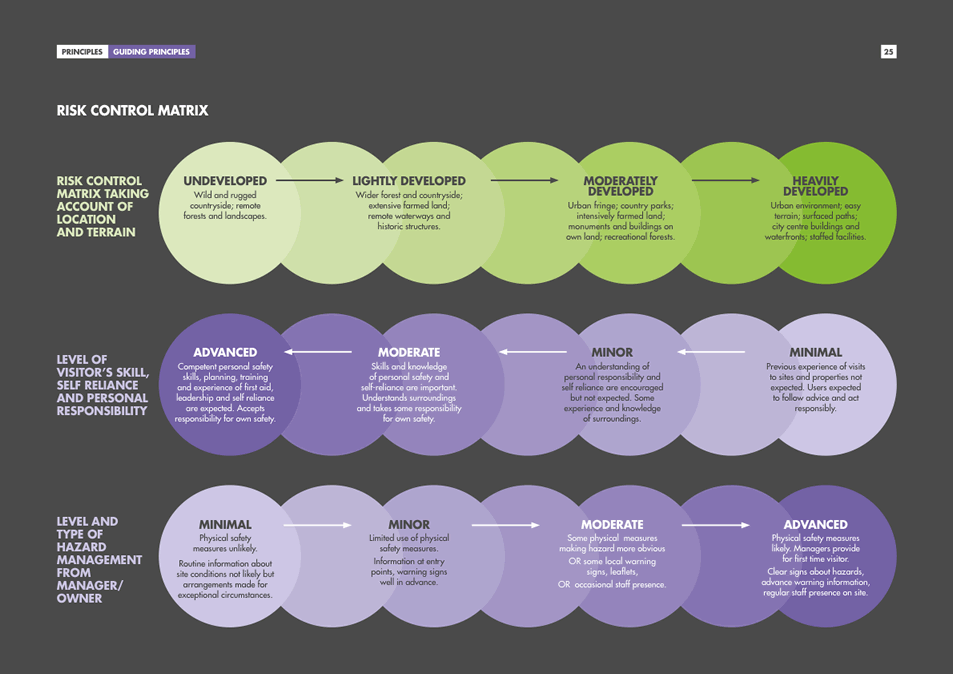

When deciding what type of path surface and level of control is appropriate it may also be helpful to zone the areas of path in accordance with the VSG risk control matrix. Paths provided for the public in “urban” zones, generally need to be able to be used safely by all people from the very young to the very old, some of whom may have limited hazard perception, various mobility or sensory impairments and unsuitable footwear. When selecting path surfaces in a more rural setting, it can be assumed that visitors will have a moderate level of fitness, and be better equipped. In wild or rugged terrain formal path surfacing may not be necessary.

[block_anchor] => [block_format] => full_width [block_introduction_title] => [block_custom_subnav] => [block_section_heading] => Risk assessment [product] => [product_text] => ) [2] => stdClass Object ( [block_count] => 2 [layout] => text_block [slug] => block-b528ab0c [title] => [source] => page [visibility] => 0 [background_colour] => bg-transparent [block_width] => indent [width] => stdClass Object ( [container_class1] => mb-4 [container_class2] => container [container_class3] => bg-transparent py-4 ) [class] => fcb-text_block [content] =>

Research has shown that a combination of factors contributes to pedestrian slip accidents:

• Path material – The slip resistance in both wet and dry conditions and surface roughness need to be considered along with durability, wear and maintenance requirements as well as cost and appearance.
• Contamination – For example algae or excrement from horses or pigeons can greatly increase the slip risk. Where it can not be easily prevented or controlled, contamination needs to be taken into account when selecting the surface material.
• Environment – Lighting, noise, visual distractions, slopes and changes in level and the consequences of falls should also be taken into account. Significant gradients need greater slip resistance; ramps need to be obvious, for example by using a contrasting colour to that of the landings.
• Use – The amount of control over the way in which the path will be used and by whom should also be considered. If people are carrying large bags or other objects then their chances of falling are increased. The elderly also have a much greater risk of slipping.
• Behaviour – Looking for signs, and using mobile phones or running can lead to hazards not being seen.
• Footwear – Good fitting flat shoes/boots with a well designed tread pattern minimise the risk of slipping. However in many cases people using paths may not have appropriate footwear.

[block_anchor] => [block_format] => section_heading [block_introduction_title] => [block_custom_subnav] => [block_section_heading] => Risk assessment [product] => [product_text] => ) [3] => stdClass Object ( [block_count] => 3 [layout] => text_block [slug] => block-b8e53e88 [title] => [source] => page [visibility] => 0 [background_colour] => bg-transparent [block_width] => indent [width] => stdClass Object ( [container_class1] => mb-4 [container_class2] => container [container_class3] => bg-transparent py-4 ) [class] => fcb-text_block [content] =>

When considering the options available to improve control of slip and trip hazards, as with all risk assessments, possible improvements should be subject to a careful cost benefit analysis. This will help you to decide what would be reasonably practicable, given the costs involved and the amount of risk reduction that would be achieved. Cost considerations should not just be financial. You should also take into account impacts on the natural or historic environment. The following matrix provides a guide as to what may be considered reasonable in a range of environments.

[block_anchor] => [block_format] => section_heading [block_introduction_title] => [block_custom_subnav] => [block_section_heading] => Options for control [product] => [product_text] => ) [4] => stdClass Object ( [block_count] => 4 [layout] => table_block [slug] => block-8c7fdabe [title] => [source] => page [visibility] => 0 [background_colour] => bg-transparent [block_width] => container [width] => stdClass Object ( [container_class1] => container mb-4 [container_class2] => bg-transparent py-4 [container_class3] => ) [class] => fcb-table_block [tables] => Array ( [0] => Array ( [table] => Array ( [use_header] => [header] => [caption] => [body] => Array ( [0] => Array ( [0] => Array ( [c] => Wild Terrain ) [1] => Array ( [c] => No identifiable paths ) [2] => Array ( [c] => No information ) [3] => Array ( [c] => No maintenance ) ) [1] => Array ( [0] => Array ( [c] => Rugged Terrain ) [1] => Array ( [c] => Paths in place, but not constructed or surfaced ) [2] => Array ( [c] => No information ) [3] => Array ( [c] => Inspection after major incidents such as storms to identify and rectify major hazards ) ) [2] => Array ( [0] => Array ( [c] => Rural Terrain ) [1] => Array ( [c] => Paths constructed, but may be uneven and steep with some slip and trip hazards. only major hazards controlled ) [2] => Array ( [c] => Routes identified, and advice given regarding safe use of paths ) [3] => Array ( [c] => Occasional inspection and maintenance ) ) [3] => Array ( [0] => Array ( [c] => Urban Terrain ) [1] => Array ( [c] => Where possible path surfaces to be even, and firm with good slip resistance ) [2] => Array ( [c] => Information to be provided on easily accessible routes and those areas where access is more challenging ) [3] => Array ( [c] => Frequent inspection, and maintenance ) ) ) ) ) ) [block_anchor] => ) [5] => stdClass Object ( [block_count] => 5 [layout] => text_block [slug] => block-9b0c6372 [title] => [source] => page [visibility] => 0 [background_colour] => bg-transparent [block_width] => full [width] => stdClass Object ( [container_class1] => container-fluid bg-transparent p-4 mb-4 [container_class2] => container [container_class3] => ) [class] => fcb-text_block [content] =>

Edinburgh Castle, Scotland
High visitor numbers at the castle ensure that the paths are treated as urban terrain.

Mount Stewart, County Down, Northern Ireland
Mount Stewart gardens have been added to the list of potential World Heritage Sites. The surfaces are an integral part of Lady Londonderry’s garden design. Therefore they would not be changed. Alternative pedestrian routes would be created if necessary.

Some factors can not easily be controlled. Risk controls need to focus on those elements which can easily be controlled. Areas over which path providers can have some influence are:

Slip resistance and roughness – All accessible path surfaces should be compact, firm, stable, and obstacle free. Surfaces should also be slip-resistant (i.e. have a Slip Resistance Value between 35 and 45) in wet and dry conditions and should not be made of reflective material. Suitable materials include concrete, bitumen macadam, stone, timber, brick/paving and grass. Sand, loose gravel, woodchips and cobbles should not be used.

Uneven surfaces, can cause problems, the maximum deviation of the footway surface under a 1 metre straight edge should not exceed 3mm. Dished channels (for drainage) should not be incorporated within pedestrian routes.

Linlithgow Palace, Scotland
The surfacing of the courtyard is of little historic significance. Therefore it has been replaced with modern materials, including mesh over the drain gulley, to create safer access.

Where contamination can not be avoided, profiled surfaces should be used, or aggregate mixed into the final adhesive layer to form a rough surface. It is important that the slip resistance of surfaces is even. Patches as small as 75 square millimetres with different slip characteristics are enough to allow a slip.

Crossfall on footpaths may be necessary to provide good drainage, but if too great, can make it difficult for wheelchair users. Any crossfall should, where possible, be between 1 and 2 in 100. Variable crossfall, affects the steering of wheelchair users and can also cause problems for people with walking difficulties.

The characteristics of different surfaces are discussed later.

• Warning Information – Many accidents are caused by unexpected changes in the walking surface. People do not often consciously recognise changes, so using signs or other forms of warning that make changes more easily recognisable can reduce the number of falls. For example it is possible for most people to safely walk on icy or slippery surfaces if the hazard is perceived and the pedestrian alters his or her behaviour accordingly. Information can also be provided at the start of paths and trails highlighting dangers and advising walkers of precautions they may wish to consider.

• Gradients and steps – Where reasonably practicable, especially in urban terrain, level access should be provided, but often the natural landscape has gradients. Sloping surfaces also drain better.

Slopes greater than 1 in 20 are regarded as ramps, and should be of a colour contrasting with that of the landings, of a material with good slip resistance and, where practicable, fitted with a handrail if they are used by the less able. As ramps can become dangerous when exposed to wet and other adverse weather conditions steps should also be provided as an alternative where possible.

Peveril Castle, Castleton, Derbyshire
The edges of the steps have been painted to make the change more obvious to people walking down the path.

Lighting – Most paths will be outside and rely on natural light, but where paths connect with indoor areas or are used after dark care should be taken to ensure that there are no sudden contrasts between brightly lit areas or bright sunlight and dimply lit, shaded or unlit areas.
